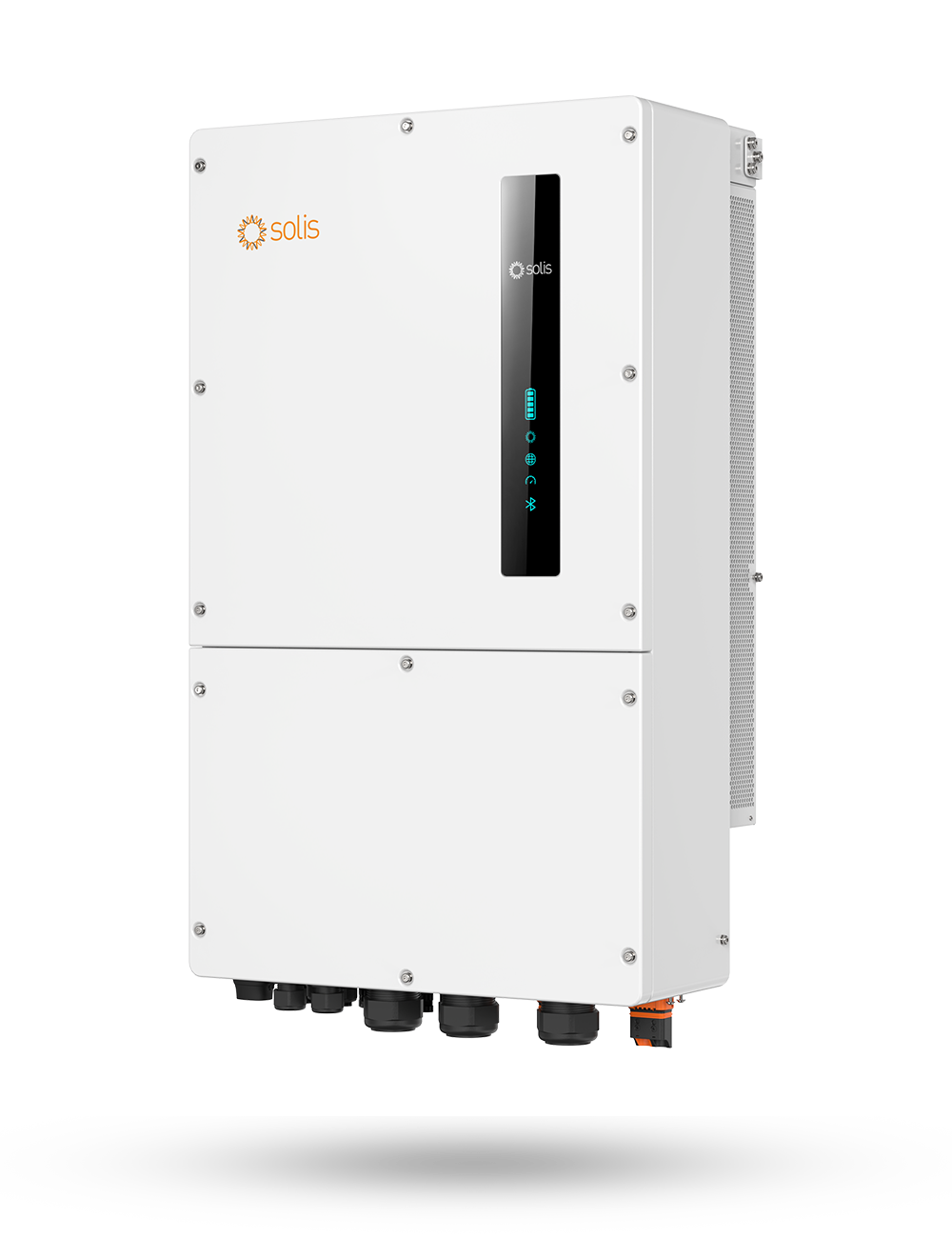

Solis S6-EH3P30K-H-EU Hybrid

131939

Integrated 4 MPPTs and string current up to 20A
Up to 70A+70A/140A max charge/discharge current
Supports peak shaving control in both "self-use" and "generator" mode
Support 1.6 times overload in short time on Backup port
Generator connectivity with multiple input methods and automatic generator On/Off control
Max. 6 pcs parallel for on-grid and off-grid operation
Increased battery protection and operation features to extend battery life
Support wide voltage range suitable for multiple batteries

Brand Solis	Manufacturers article number S6-EH3P30K-H-EU
Warranty in years	Country of manufacture China
Depth (mm) 600	Width (mm) 230
Height (mm) 500	Weight (kg) 32,6
Inverter type Hybrid	Number of phases 3
Nominal output power AC (W) 30000	Max. input power DC (W) 42000
Max. input voltage DC (V) 1000	Number of MPPT 4
Built-in battery No	Degree of protection (IP) IP66
Suitable for outdoor mounting Kyllä	DC Switch No
Surge protection	Arc-fault circuit interrupter (AFCI) Kyllä
Display Kyllä	WiFi Optional
Ethernet Yes
