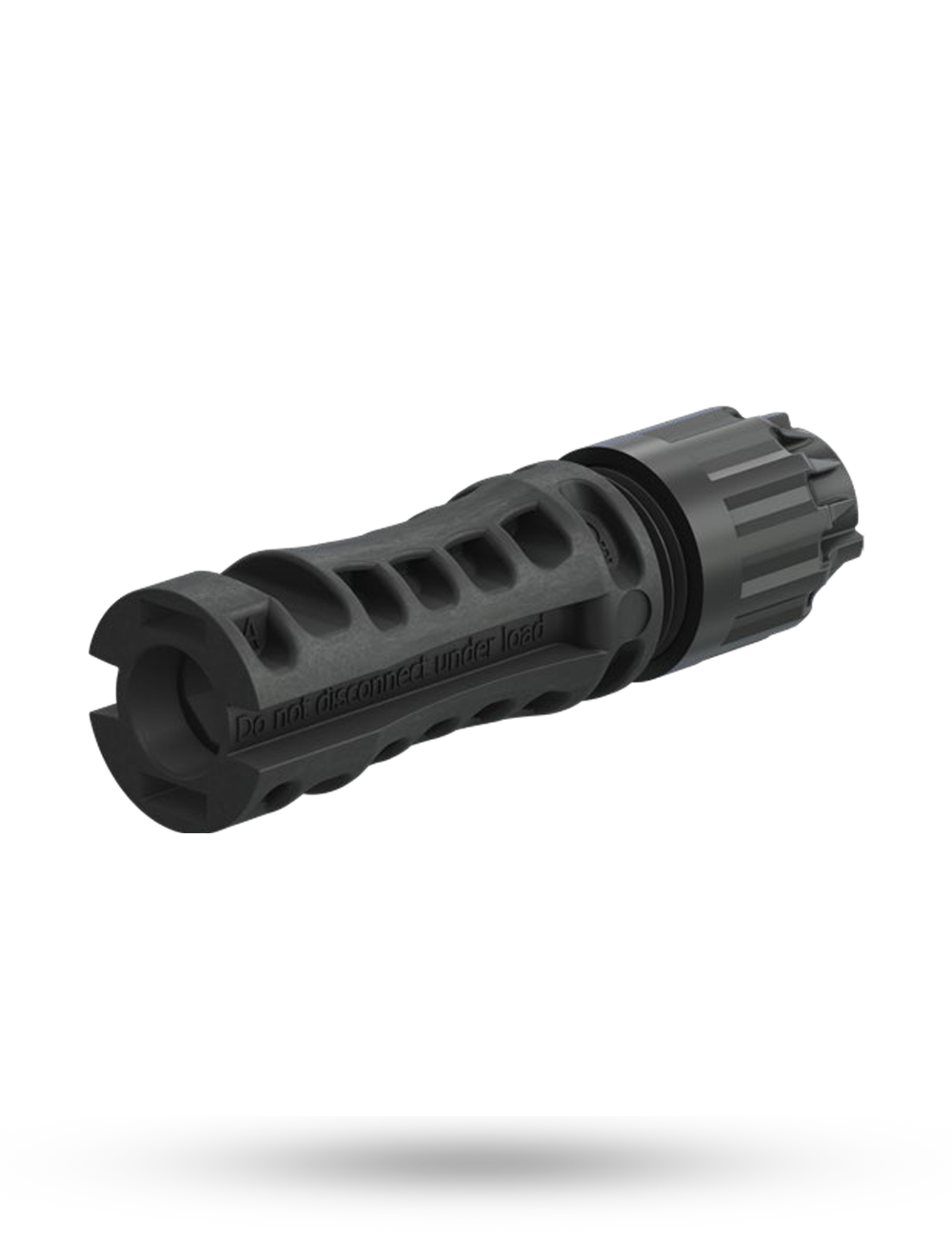

Stäubli Male cable coupler MC4 Evo-Stor (10mm²)

PV-KST4-EVO ST/10II

For 10mm² solar cable.

Outer diameter of cable:  6,4 – 8,5 mm

• Internationally certified with IEC, UL, JET, cTÜVus.
• Approved for DC 1500 V (IEC, JET), DC 1500 V (UL) unrestricted access.
• MULTILAM Technology, has proven the quality and durability several 100 million times since 2004.
• Suited for all climatic environments due to UV resistance, ammonia and high IP class (IP68).
• Available as a field and preassembled connector, standard crimping tools can be used.
• MC4-Evo stor to connect hybrid inverters to battery storage system.
• Note! Not compatible with original MC4 or MC4-Evo 2.
